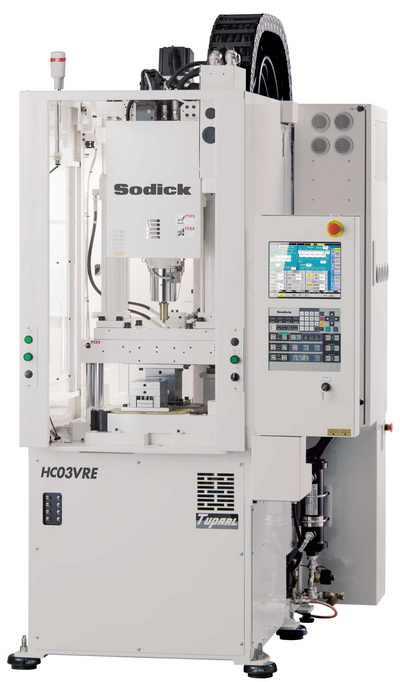

Sodick Introduces HC03VRE Micro Vertical Injection Molding Machine
1/28/2015 |
|
|
Schaumburg, IL - January 27, 2015 - Plustech, Inc., the North American branch of Sodick's IMM Division, will be introducing the new HC03VRE Micro Vertical Molding Machine at NPE2015. Designed for the high-speed molding of precision micro parts, the HC03VRE achieves a dry cycle time of only 0.9 seconds.
Short cycle times are made possible using a mold clamping system that closes and clamps in a single motion coupled with a belt-driven table rotation. The electrically driven hybrid direct-pressure mold clamping system uses four tie-bars to ensure excellent alignment and high rigidity so that clamping force is applied uniformly.
The HC03VRE also features Sodick's V-LINE® System which separates the plasticization and injection processes. This two-stage plunger system enables consistent measurement and injection, ideal for miniature / micro precision components.
With a compact footprint of only 1625mm x 1178mm (63.9" x 46.4"), the HC03VRE has a 460mm (18.1") table and a clamping force of 3.3 tons. At NPE2015, Sodick will be featuring a live demo of the HC03VRE (8mm plunger / 14mm screw): a direct gated two-cavity micro-bobbin application (part weight of 0.09 gram) with a cycle time of only 1.9 seconds.
Plustech will feature two addition demonstrations at NPE: Sodick's GL100 100 ton Horizontal Injection Molding Machine running a metal to plastic conversion automotive application, and Sodick's LP20EH3 Horizontal Micro Molding Machine running Celanese's new LCP material. Please visit Plustech at NPE2015, March 23-27, 2015 at the Orange County Convention Center in Orlando, Florida.
For more information on Plustech, Inc. and Sodick's line of injection molding machines, please visit www.plustech-inc.com.
ABOUT PLUSTECH, INC. - Plustech Inc. is the North American branch of Sodick's Injection Molding Machinery Division. Based in the suburbs of Chicago, Plustech sells, services and supports Sodick's entire line of precision injection molding machines in the North American market. |
|
Related Exhibition:
|
|
|
 |
|
NPE 2015
|
The International Plastics Showcase
3/23/2015 - 3/27/2015
Venue: Orange County Convention Center, Orlando FL, United States
|
|
|
|
|
|
|
