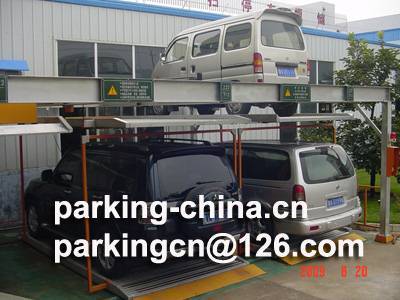

Two post park lift
Model: DTPP106
|
|
Characteristic of the Park Lift
1. This park lift is full steel frame structure
2. Adaptable at basement or basement parking garage, but net height of basement is at least 3.6m.
3. Top pallet is driven by the rear hydraulic cylinder; there are not any columns, beams and hanging chains in front of the parking entrance for convenience parking in and out.
4. Easy operation and maintenance;
5. Easy installation
6. This park lift is mostly for family use, ground space has height of 2134mm for SUV type of cars;
Parameters of this Park Lift
Lift weight: 2700kg Height: 3536mm
Max lift height: 2134mm Width of Road path: 2117mm
Central column width: 2422mm Width of single set: 2587mm
Length of single set: 4010mm Length of waving plate: 2117mm
Lift time: Loaded lift: 90S Fall time: Loaded fall: 60S Power: 220v/380v Motor power: 2.2KW
Appearance and coating
1. Painting
2. Hot galvanizing, Price will be USD200/set more than ordinary painting;
Structures: Composed of steel frame, transmission system, pallet, safety protection devices, electric control system and operation system;
|
|
