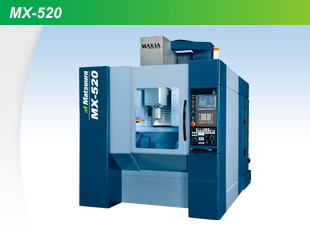

| Matsuura 5 Axis - MX-520
|
|
Launched to much acclaim globally in 2010, the MX-520 is a single table 5 axis machine tool primarily aimed at companies making the transition from 3 to 5 axis operations - although installations to date show that established users of Matsuura MAM72 products are also investing in this versatile machine tool.
Travel: X / Y / Z mm 630 / 560 / 510
Travel: A / C deg -125~+10 / 360
Working Surface mm Ø300 STANDARD
Ø500 OPTION
Max. Work Size mm Ø520~H350
Loading Capacity kg 150
Spindle Speed min-1
12,000 : BT40 STANDARD
20,000 : BT40 OPTION
Rapid Traverse: X / Y / Z m / min 30
Rapid Traverse: A / C min-1 10 / 25
Number of Tools 40
Type of tool shank JIS B 6339 40T
Maximum tool diameter mm Ø96 with adjacent tools Ø150 without adjacent tools
Maximum Tool Weight kg 10
Tool Changing Time Seconds 1.1
NC Matsuura G-Tech 31i |
|
