Shining3D-Metric
Model: Shining3D-Metric-N
|
|

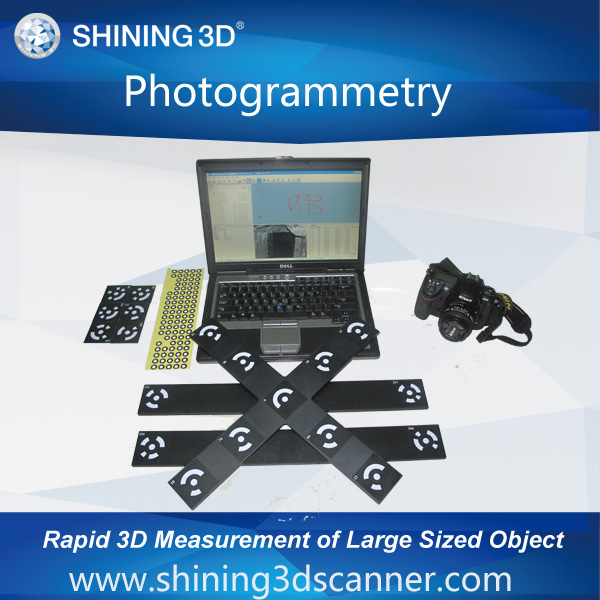

Shining3D-Metric | 3D Photogrammetry System, Rapid 3D Measurement of Large Sized Object
Shining3D-Metric system(Photogrammetry System,Digital Photogrammetry ) is applied for assisting accurate and fast 3D measurement of large sized object
Applications:
- Rapid 3d measurement and inspection of medium or large work-pieces in meters or dozens of meters;
- Error analysis of CAD model; inspection of size and geometric deformation;
- Control overall accuracy of large work-pieces with 3D scanners;
Features
1.Fast
- Shining3D-Metric photogrammetry calculate accurate 3d space coordinates quickly and create an overall coordinate system, by which we can do error analysis to achieve rapid large work-piece 3d measurement;
2.Accurate
- Shining3D-Metric photogrammetry control overall accuracy during large work-piece 3d measurement to lower accumulated error by working with 3D scanners;
Specifications
Model: Shining3D-Metric-N
Accuracy: <=0.10mm/3m
Measuring Area: 0.1*0.1-0.1~10*10*10m3
Ambient temperature: -20º~100ºC
Reference standard: VDI 2634/1
Calibration: Self-calibration
Matching way: Automatic coding point match
Data transfer: Wireless transmission or flash card
Camera specification: SLR, 24mm lens,>=12,000,000 pixels
Align way: Automatic marking point alignment; |
|
