Home > Instruments & Meters > Testing Machine > Simple Beam Impact Testing Machine/Plastic Impact Tester/Izod Impact Tester

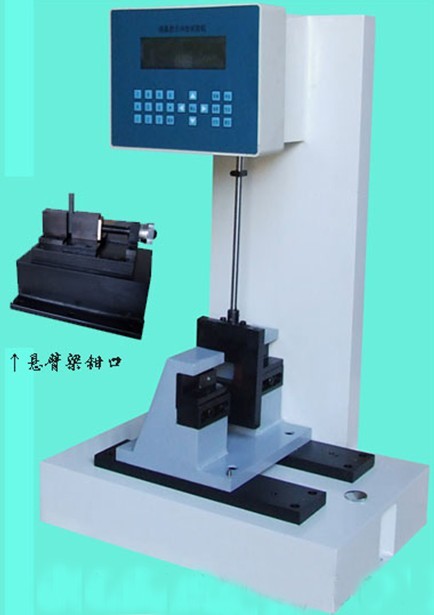

Jinan Liangong Testing Technology Co., Ltd Company  |  Products  |  News  |  Contact Us Simple Beam Impact Testing Machine/Plastic Impact Tester/Izod Impact Tester Model: XJ-25D Specification Simple beam impact tester 1. Impact speed: 2.9m/s, 3.8m/s ; 2. Pendulum energy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J. 3. The distance between pendulum center and sample center: 221mm, 380mm 4. Pendulum angle: 160º 5. Pendulum torque: Pd1=0.5155N.m Pd2=1.0311N.m Pd4=2.0622N.m Pd5=2.5777N.m Pd7.5=3.8662N.m Pd15=7.7324N.m Pd25=12.8888N.m 6. Clamp mouth supporting spacing: 40mm, 60mm, 70mm, 95mm 7. Supporting blade fillet radius: R=1mm 8. Impact blade Angle: 30º 9. Impact blade fillet radius: R=2mm 10. Sample type size, supporting spacing (Unit: mm) Sample Type Length Width Thickness Supporting Space Clamp 1 80±2 10±0.5 4±0.2 60 A 2 55(50)±1 6±0.2 4±0.2 40 B 3 120±2 15±0.5 10±0.5 70 C 4 125±2 13±0.5 13±0.5 95 D Cantilever Beam Impact Tester 1, Impact Speed: 3.5m/s ; 2, Pendulum Energy: 1J, 2.75J, 5.5J, 11J, 22J; 3, Pendulum Angle: 160º; 4, The distance between pendulum center and sample center: 322mm 5, Pendulum torque: Pd1=0.5155N.m Pd2.75=1.4177N.m Pd5.5=2.8355N.m Pd11=5.6711N.m Pd22=11.3419N.m 6, The distance between pendulum striking edge and upper plane of jaw: 22mm, 7, Impact blade fillet radius: R=0.8mm 8, Sample meet the standard: GB1843 - 80 and ISO180 - 82 Related Products Hydraulic Universal Testing Machine-UTM-Material Testing Machine Jinan Liangong Testing Technology Co., Ltd Universal Testing Machine Series Hydraulic Universal Testing Machine WEW series are computer LCD display, all kinds of parameters and curves can display ... Computerized Semiautomatic Charp Impact Testing Machine-Lab Equipment Jinan Liangong Testing Technology Co., Ltd Pendulum Semiautomatic Impact Testing Machine JB-300B/500B Semiautomatic Impact Testing Machine JB-300S/500S Digital Display Semiautomatic Impact Testing ... Computer Control Ultralow-temperature Pendulum Charpy Impact Testing Machine Jinan Liangong Testing Technology Co., Ltd Impact Testing Machine Low Temperature Automatic Impact Testing Machine JBD-300S/500S Digital Display Low-temperature Automatic Impact Testing Machine ... Cflow Extrusion Plastometer ZwickRoell AG The compact, easy-to-use Cflow extrusion plastometers have been designed as stand-alone instruments. They are specifically intended for MFR determination ... Aflow Extrusion Plastometer ZwickRoell AG The Aflow extrusion plastometer was developed especially for laboratories with high specimen throughput and therefore features robust design and convenient ...
