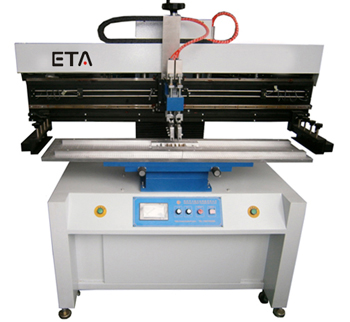

1.2M metres semi automatic printing machine
Model: 1.2M
|
|
1.2M metres semi automatic printing machine
Semi Automatic Pcb Printer For Smt Assembly
Product features:
1.Using precision to import guide rail and delta variable frequency motor to drive the scraper seat,high printing precision.
2.The printing scarper to rotate 45 degrees fixed,conveninent printing plate and the scraper cleaning and replacement.
3.The scraper seat can be adjusted,in order to select the proper printing position.
4.Combination printing plate with fixed grooves and PIN,convenient installation on and adjustment,is suitable for single,double plate printing.
5.The school edition with steel net mobile,and the combibation of printing(PCB)X,Y,Z.Correction of fine-tuning convenience.
6.Based on PLC and touch screen control,simple,convenient for man-machine dialogue.
7.Set one-way and two-way,various printing forms.
8.With automatic counting function,convenient production yield statistics.
9.Blade angle adjustable,steel scraper,scraper are stutiable for rubber.
10.Touch screen with screen protection function,the time can be adjusted,protects the touch screen using life.
11.Using AE unique program design,the printing scraper seat adjustment is convenient.
12.Printing machine speed display,adjustable.
Technical parameters:
Printing area:1280X320mm
Screen frame size:1300X320mm
Board size:1200X300mm
Substrabe thickness:0.2-2.0mm
Printing posting fixing:PCB Outer Or Pin Positioning
Plate tuning:Front/back •0mm R/L •0mm
Printing precision:•.02mm
Machine repeatability:•.02mm
Minimum spacing:0.35mm
The use of air pressure:4-6kgf/cm2
Power supply:Single-phase 220V, 50/60Hz, 100W
Dimensions:L1600XW900XHl650mm
Weight:(about)300kgs |
|
