| High Standards and Long Service Life - THAKO Models
|
|

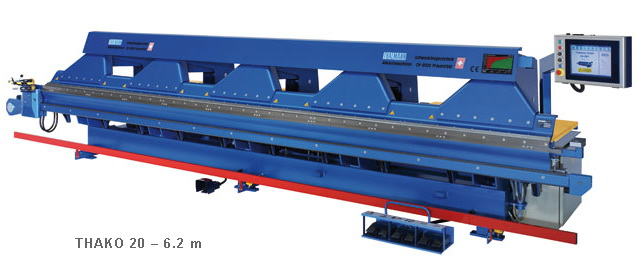

The THAKO model, the Thalmann Company's flagship folder, was primarily designed for ambitious facade and roof constructors as well for the industry sector - it combines decades of experience, development and engineering of long-length folders. The ingenious design of the THAKO meets virtually all customer requirements and allows for increasing requirements in terms of efficiency, flexibility, durability and safety.
Individual selection of beam geometry, gripper systems for material handling, roll-former units as well as an insertion depth of up to 2000 mm and machine lengths of up to 18.2 meters are just a few of the highlights offered by this model range.
The unique Thalmann control shaft principle guarantees unrivalled accuracy and quality throughout the machine's entire life.
The following parts are standard equipment:
Complete electric and oil-hydraulic installation
Hydraulic system filled with required oil quantity
Integral leveling device
Three-phase main switch
Automatic cutter attached to bending flange
Adjustable cutting head with sheet support roller
Modular support table
Box with spare parts and material for machine maintenance
Safety equipment in accordance with CE standards
Blue hammered finish paint
Special equipment
Automatic cutter for 3 mm sheet metal (400 N/mm2)
Dynamic crowning
Roll-forming unit
Pneumatic gripper-system for part handling
Tapered backgauge
Variable back gauge for short profiles
Hydraulic radius adjustment through CNC controller
High speed hydraulic for 30 % higher working speed
Hardened and ground extra rail for clamp beam
Individual selection of beam geometry |
|
