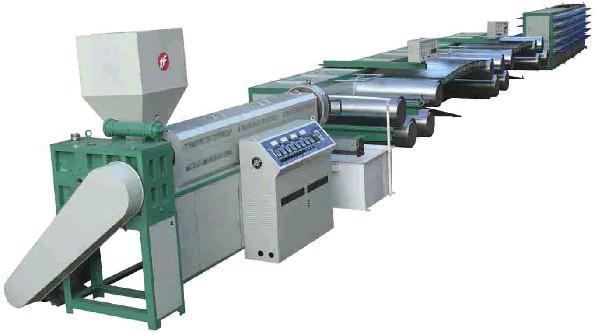

Flat Yarn Making Machine
Model: SJ-FS5.5-110 IIB/600
|
|
This machine uses the Polypropylene(PP) or high density polyethylene(HDPE) material to produce tapes for PPwoven bags,weaving through production procedures of material heating & extruding,splitting the film into tapes.stretching & forming tapes,and then winding on the bobbins by winding machine,finally put the bobbins with tapes on circular loom for weaving.
The tape extruding & stretching machines are our,With the use of special and advanced technology,we have refored this series machine many times.Through iproving,the machine can be fit for all kinds of PP&PE material,such as 100% recycled material,powder or grain material,to produce tapes.The screw and barrel of extruder are ade of high quality 38CroA1A alloy steel,the hardness is over Hv950 after nitriding treatment.It has the performance of easy operation & maintenance,reliable quality & running and long usage life.
Patent No:ZL99219359.1 ZL00202490.X ZL99242134.9 ZL01208472.7
Main Technical Variables
Model SJ-FS5.5-110 IIB/600
Diaeter of screw 110mm
L/D ratio of screw 20?1
Revolution of screw 10-55r/min
Motor power of extruder 18.5kw
Heating power of extruder 24kw
Width of die-lip 600mm
Diameter of drum 320mm
Number of arch heating plate 2pcs
Heating power of the plate 15kw
Stretching ration 4-7
Production capacity 30-80kg/h
Winding speed 20-150m/min
Number of winder 100spindles
System installed capacity 98kw
Normal operational capacity 64kw
Weight 8000kg
Overall dimension(J*W*H) 23600*2500*1800mm
|
|
