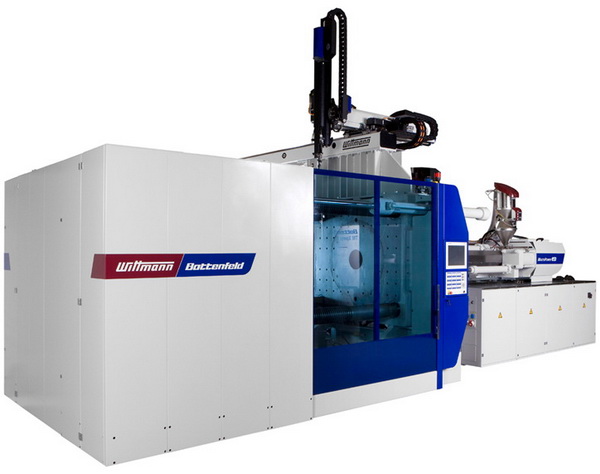

| MacroPower 400 - 1600 t
|
|
The MacroPower is the new large machine model of the PowerSeries: compact, modular, precise. Newly developed in the 400 to 1,600 t clamping force range, it stands for shortest footprint, speed and modularity. With a comprehensive package of options and configuration variants, the MacroPower lends itself to a great variety of applications. This is true greatness with most compact dimensions!
The new benchmark for large machines
The MacroPower stands for shortest footprint, speed, modularity, ultimate precision and cleanliness. The modular design of this new large machine model makes it suitable for a great variety of applications. The linear guide system of the moving platen ensures fast energy saving movements, a clean mold space and maximum precision in mold protection. The MacroPower reaches its high speed by means of fast movements and minimal locking and high-pressure build-up times, achieved by the innovative locking system QUICKLOCK developed by WITTMANN BATTENFELD.
Another special highlight of this new machine generation is the ease with which molds are inserted from the rear of the machine. An extended safety gate stroke at the rear, combined with tie-bars kept at below-average length, thanks to the locking system that has been integrated in the moving platen, allows insertion of bulky molds in most cases without a tie-bar pulling device.
Advantages:
Smallest footprint.
Shortest locking and pressure build-up time through QUICKLOCK system.
Easy, lateral mold insertion through virtually tie-bar-less access during mold change.
Quick even clamping force build-up.
Clamping unit
Extremely short footprint.
High rigidity and stability thanks to short tie bars and FEM optimized platens.
Synchronized locking of tie bar nuts completely integrated in moving platen.
Low-maintenance linear guides to support moving platen.
Clean mold space through a linear guide of the moving platen with little lubrification.
Precise platen parallelism over the entire stroke.
High opening and closing speeds through differential control system.
Short dry cycle times.
Easy mold insertion and high mold weights.
Sensitive mold safety system thanks to extremely smooth-running platen guides.
Mold protection through minimization of platen deflection.
Low-maintenance and service-friendly design of all components.
Low energy consumption.
Injection unit
Optimized melt homogeneity thanks to a uniform L/D ratio of 22 : 1 and an injection pressure of 2,000 bar with medium-diameter screws.
Solid design of the injection unit.
Carriage cylinders positioned opposite each other provide momentum-free nozzle carriage.
Compact design with integrated hydraulic block and easy access to all components.
Direct screw drive via low-speed hydraulic motor with optimal adaptation to individual plasticizing demands.
Ultimate repeatability thanks to controlled servo-valve.
Short footprint with two pulling cylinders.
High injection rates.
Universal compatibility of barrels with different injection units. |
|
