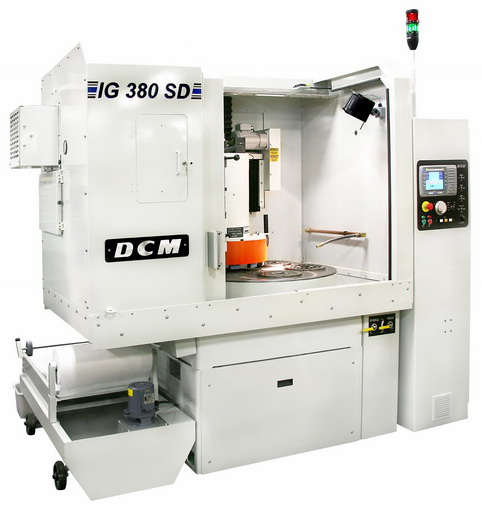

IG 380 SD Surface Grinder

DCM IG 380SDThe IG 380SD provides the greatest capacity of all of the DCM grinders, it features a 36" diameter electromagnet chuck with through table vacuum, air or hydraulic clamping. The powerful 30 HP grinding spindle provides exceptional grinding performance for both conventional and superabrasives. The IG 380SD is configured with a full coolant enclosure, air/mist filtration and swarf system with continuous filtering of the coolant. Clean coolant results in repeatable grinding performance. The automated grinding control simplifies machine operation and ensures excellent grinding results.

Grinding Applications:

Fixture & Die preparation
Grinding Glass Plates to Thickness
Crystal Grinding
Job shop Applications
Machine Specifications

Servo Drive PLC Control
30HP Grinding Spindle Motor
Variable Speed Grinding Spindle
Air Mist Collector
Bed Style Coolant Filtration System
36? Electromagnetic Chuck w/Variable Force Control
96? x 62? (w/o Swarf Filtration)
