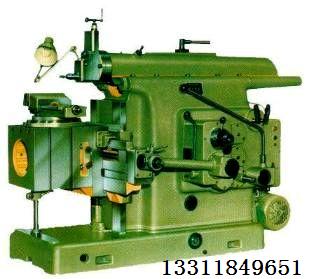

Shaping machine
Model: B6050
|
|
Shaping machine:
This machines is designed for shaping plane and formed surfaces. If used for shaping plane surfaces, T-slots and dovetail slots, etc. On narrow and long workpieces, the machine will obtain much higher productivity. With the equipment of a special vice or a diveding head, the machine can be set for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
Specifications
Max. shaping length500 mm
Max. distance from lower edge of ram to table370 mm
Max. travel of table Horiazontal 500 mm
Vertical 300 mm
Max. swivel angle of table Without vice ???90?
With vice ???55?
Max. vertical travel of tool head110 mm
Frequency of ram strokes15,24,37,51,64,80,
102,126,158 times/min
Table feed per ram stroke
Pawl riding over 1 ratchet tooth Horiazontal 0.0845 mm
Vertical 0.133 mm
Pawl riding over 10 ratchet tooth Horiazontal 0.845 mm
Vertical 1.33 mm
Motor 3kW1420 r/min
Vice measurements
(L??? W??? Max. opening)240???64???215 mm
Overall dimensions (L??? W??? H)1943???1160???1533 mm
Packing size (L??? W??? H) Export 2150???1340???1470 mm
Import 2210???1450???1470 mm
Net Weight1800 kg
Gross Weight2100 kg
|
|
|
|
|
