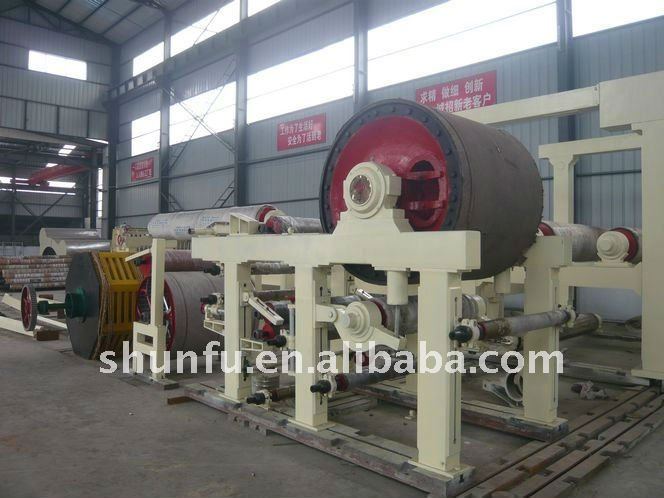

1575 Mm Model Double-Cylinder Carton Paper Machine
Model: 787?, 600?, 1092?, 1575?
|
|
Product Specifications /Features
Raw materials:waste paper,wood pulp,wheat straw,the straw,reed
Model:toilet paper machine, writing paper machine,kraft paper machine,package paper machine
Capacity:3--50ton/day(3-50t/d)
1575 mm double wire kraft paper machine
Technical parameters
Papermaking varieties: kraft paper, writing paper, printing paper
Papermaking quantitative :45-120g / m2
Net paper width: 1575mm
Copper mesh width: 1950mm
Capacity: 8-15T / D
Rail distance: 2400mm
Transmission: AC variable frequency and distribution of transmission.
Major equipment structure
1, Park Network Division: f1250mm ? 1950mm cage 2, f400mm ? 2100mm Couch 3, (including a roll back), rubber hardness of Shore 380 •2, pneumatic compression device, spray forming pressure Garden Network device two sets, set back roller device.
2, Press Section: f500mm ? 2100mm stone roller 1, f450mm ? 2100mm roller 1, the rubber hardness of Shore 900 •2, pneumatic compression device.
Third, the dryer section: f1500mm ? 1950mm dryer 2, f450mm ? 2100mm roller 2, the rubber hardness of Shore 900 •2, pneumatic compression device, the second cylinder set of dry network device.
Four calendar and coiling Department: 1575mm 3 roll-ray machines and 1575 Park drum roll machine.
5, Transmission and Control Division: use AC variable frequency and distribution of transmission, all-digital closed-loop control system.
Lead time:30--90days
Term of payment:T/T, 30% in advance,70% before shipment
Installation Projects
Pulping equipment installation ok
Installation of paper machine equipment ok
Common components configuration ok
Department based the installation of transmission ok
Static and Dynamic Balance correction ok
Pipeline installation ok
The adjustment of entire production line and try to run ok
|
|
