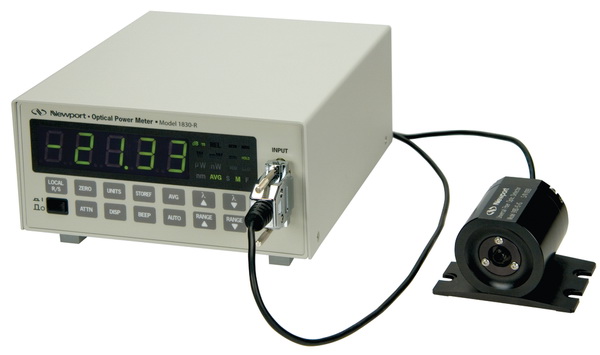

| Optical Power Meter, 1830-R, USB Only
|
|
The all new Model 1830-R Optical Power Meter is a completely redesigned optical meter, replicating much of the functionalities and specifications of the legacy 1830-C Power Meter. The 1830-R is a perfect drop-in replacement for 1830-C, which was the most popular Newport meter used in production testing of fiber optic components.
DC power measurements can be displayed in units of W, dBm, dB, and Relative Measurement on the instrument's bright 4 1/2 digit annunciated LED, providing wide dynamic range with power sensitivities down to 10 pW and full scale readings up to 2 W. Various detector accessories allow for both free-space and fiber coupled power measurements.
Relative power measurements, in reference to a previously stored value, is performed with the result displayed either as a ratio or dB. A built-in beeper, which changes its frequency as a function of incident optical power, can be utilized to optimize optical beam alignment.
USB2.0 is the standard computer interface. Both the legacy 1830-C and the newer 19xx-C commands are supported. Additional features include wavelength adjustment in 1 nm steps from the front panel, and an analog output that provides a voltage proportional to the detector current, to be used for recorder or control loop applications. GPIB version (1830-R-GPIB) also available.
Model 1830-R
Instrument Type Benchtop, high accuracy
Accuracy ±0.25 %
Analog Output 0-2 V into 1 MΩ, 0-1 V into 50 Ω
Display Type 4.5 Digit, 7 Segment
Communication Interfaces USB2.0
Power Requirements 100-120, 220-240 VAC ±10%, 50/60 Hz
Storage Temperature Range <90% RH noncondensing, -20ºC to 60 ºC
Weight 4.5 lb ( 2.0 kg )
Maximum Input Power Detector dependent
CE Certified Yes
RoHS Compliant |
|
