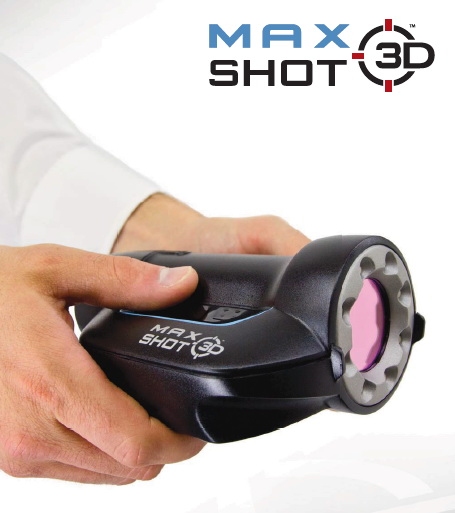

| MaxSHOT 3D Optical Coordinate Measuring System
|
|
This complementary product adds the accuracy and speed of photogrammetry to the wide range of applications already possible with Creaform technologies, especially when it comes to larger parts.
Creaform is renowned for the portable, reliable and very easy-to-use technologies it designs. In concrete terms, the system, combining the MaxSHOT 3D photogrammetric video camera and the VXshot processing software, stands out from other systems because it is so easy to use.
Its user-friendly design allows even those new to photogrammetry to quickly and easily generate a high accuracy positioning model of an object based on a series of photos.

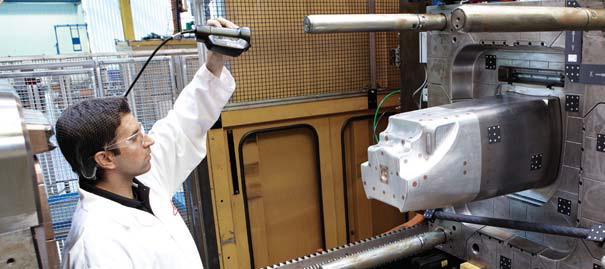

All you have to do is simply place a few coded targets either on the object to be measured or in its environment. Then, you take several blocks of convergent photos and launch the bundle adjustment process (image triangulation). Through this process, the reflectors placed on the object can be easily rebuilt in 3D. The scale bars provided in the measurement volume allow for model scaling.
Once the calculations are complete, the Creaform 3D scanner or optical CMM automatically uses the high accuracy positioning model generated in VXelements to determine its position in the measurement volume.
VXshot
Unlike other systems on the market, where data accuracy is partially contingent upon the operator's experience and technique, VXshot features an extremely simple data acquisition process.
1. Guides operators every step of the way throughout the process;
2. Clearly and immediately notifies operators if they need to take additional pictures to increase measurement accuracy;

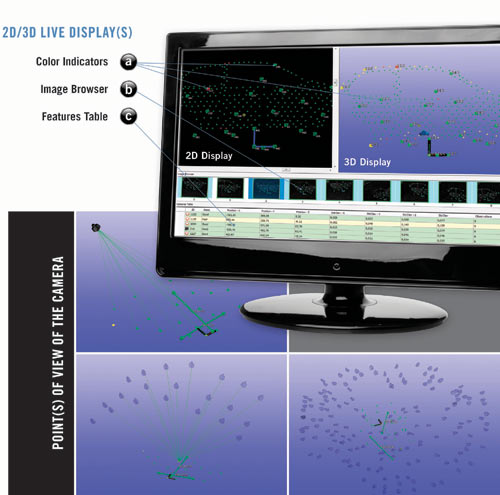

3. Real-time visualization and validation of the positioning model make it possible to see the rebuilt volume and all estimated points with the utmost accuracy;
4. Measures and recompute all the identified points each time an image is taken.
The VXshot module can be used with the MaxSHOT camera or the MAXscan 3D scanner.
|
|
