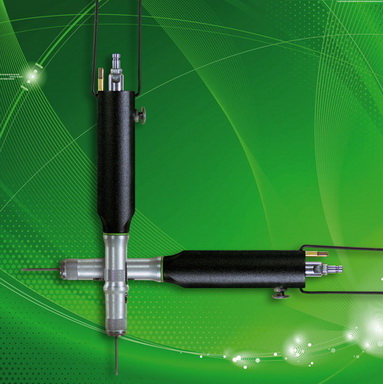

| NANOMAT Screwdriver
|
|
The NANOMAT - the Screwdriver with the smallest torque capability available anywhere on the market for your micro assemblies
in the Medical Industry for the process reliable assembly of hearing aids and pacemakers
in the Watch Making Industry
in the Optical Industry for the assembly of eye-glasses, lenses, cameras or microscopes
for the assembly small consumer electronics and components, such as cell phones, calculators, game consoles, PC's
in the Precision Engineering for the production of measuring instruments
The use of the NANOMAT Screwdriver has many advantages:
Highly accurate shut-off clutch
The high torque-accuracy is achieved by the proven principle of the DEPRAG disengagement- and shut-off clutch. This special clutch design enables our screwdrivers to reach extreme high torque accuracy, in many cases below ± 3% of the standard deviation, which is kept constant over several million of cycles.
DEPRAG pneumatic driven screwdrivers with a shut-off clutch opperated at suitable surrounding conditions achieve a Cmk value of >=1.67 at a ± 10% tolerance based on 6 Sigma according to ISO 5393. A Cmk value of 1.67 means that there is a failure rate of only 0.6 per one million screw assemblies.
Standardized, extreme slender design
Due to its extreme small size, the smallest hole-pattern that we can access with two side-by-side mounted stationary screwdrivers is 12-mm [0.472-inches].
Ergonomic housing design
For a sensitive and precise guidance of the screwdriver
Integrated quick change chuck
Allows fast and simple bit-change
Can be attached to a DEPRAG Screwfeeder
for the ergonomic handling of the smallest connection elements
ESD-execution
for the dissipation of electrostatic charges
Drive size is designed to accept standard bits with 3-mm drive according to DIN 3126
The use of standard bits is a huge advantage through cost-saving and fast availability
Clutch can be adjusted externally
The torque can be adjusted from the outside within a very short time without the need for special tools.
Uniform length
The uniform length of all gear-stages allows a simple integration.
Proven DEPRAG guide-bolt system
features an "axial spring load" that regulates the optimum screw end-load pressure.
Allows screw-suction by integrated vacuum port
There are no interfering vacuum-hoses in the housing area. |
|
|
|
|
